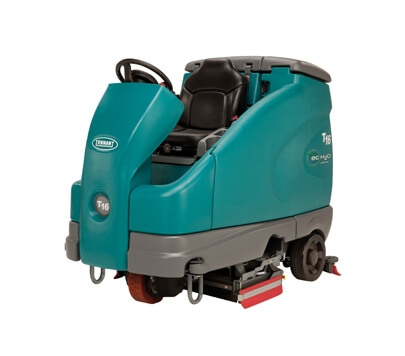

Tennant T16

Battery-powered rider Scrubber

Less expensive to operate and maintain
The T16, equipped with Tennant’s exclusive scrubbing technologies, is engineered to be up to 20% less expensive to operate and maintain than traditional scrubbing methods based on acquisition cost, consum- ables, maintenance, and Tennant’s traditionally higher resale value.
The highest quality materials and parts go into every T16 to ensure solid construction and extend the performance life of the machine.
Whisper quiet operation
The quietest machine in our industrial rider scrubber line, the T16 allows unobtrusive cleaning anytime of the day and anywhere in the building. operating at just 68 dBa, the T16 won’t disturb customers, employees, students, patients or visitors in noise-sensitive areas.
Enhanced operator safety, comfort, and ease of use
The T16’s unparalled design provides an intuitive and operator-friendly experience. Simple patent-pending Touch-n-GoTM control module on steering wheel instills confidence and allows the operator to safely focus on keeping both hands on the wheel even while changing scrub functions. exceptional visibility and outstanding operator comfort offer enhanced control and safety.

Advantages

  • Ech2o chemical free cleaning
  • Achieve up to 20% lower cost of owner- ship with Tennant’s quality construction and innovative technologies
  • Clean anytime, anywhere with the whisper-quiet T16 at 68 dBa
  • enhance productivity and safety with unparalleled user-friendly design and Touch-n-GoTM controls

Sustainable Solution

Tennant’s ec-h2oTM technology electrically converts plain tap water into a powerful cleaning agent without any added chemicals. as a result, ec-h2oTM poses no harm to the environment or to the people using the technology. The T16 with ec-h2oTM technology can pay for itself in chemical cost savings over its lifetime. ec-h2oTM:

  • Cleans as well or better than traditional methods
  • Saves money and improves productivity
  • Increases safety and promotes health
  • Reduces your environmental impact
UnitT16

Features

Cleaning path36 in910 mm
With scrubbing side brush45 in1,145 mm
With sweeping side brush (cylindrical only)46 in1,170 mm
With dual side sweep brushes (presweep only)46 in1,170 mm
Disk scrub head
Speed300
Down pressure weight (variable to)250 lb114 kg
Brush diameter (2)18 in460 mm
Brush motor (2)1.0 hp0.75 kw
Cylindrical scrub head
Speed500 rpm
Down pressure weight (variable to)200 lb91 kg
Brush diameter (2)8 in205 mm
Brush motor (2)1.0 hp0.75 kw

Tanks

Solution tank50 gal190 l
Solution capacity with eS®75 gal280 l
Recovery tank60 gal225 l
Demising chamber10 gal38 l
Vacuum fan0.75 hp0.65 kw
Speed14,000 epm
Water lift65 in1,650 mm

Propelling system

Propel speed forward (variable to)5.6 mph9 km/h
Propel speed reverse (variable to)2.5 mph4 km/h
Propel motor1.6 hp1.2 kw
Gradeability
Transport at gross weight8 deg / 14.1%
Working (scrubbing)4 deg / 7%

Machine dimensions

Length 74 in1,880 mm
Width41 in1,040 mm
Rear squeegee (hard width)42 in1,070 mm
Height58 in1,475 mm
With overhead guard82 in2,080 mm
Weight1,100 lb500 kg
With standard 235 ah batteries1,900 lb860 kg
Minimum aisle turn83 in2,110 mm

Sound level

Operator's ear
Disk: mode #168 dBa
Cylindrical: mode #171 dBa
(Sound pressure level tested per iSo 11201 as recommended by the aaCem and oSha)
